On-grid Inverter

vsole-inv

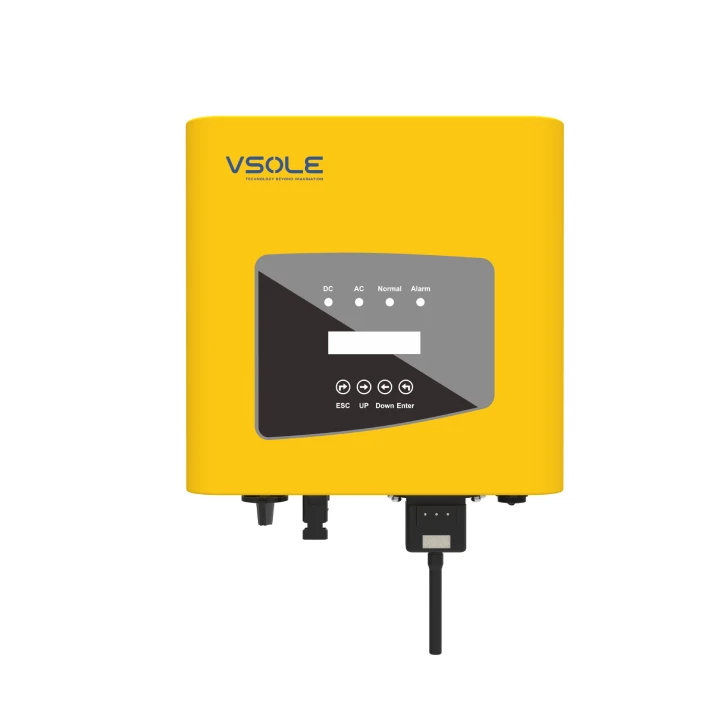

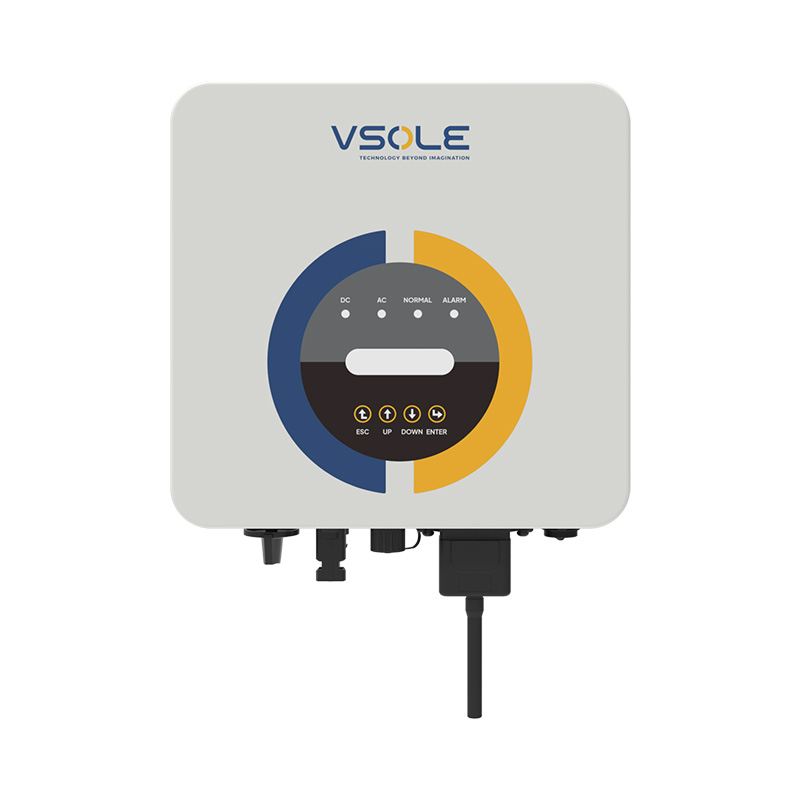

GRID TIE INVERTER – SINGLE PHASE -VSS
(101S -622S) 1.0 KW-6.2KW

  • Max. conversion efficiency 97.5%
  • DC overloading up to 10%
  • MPPT Tracking Voltage
  • (1 – 3.3 KW) ~70-500 V
  • (4 – 6.2 KW) ~80-500 V
  • Max. DC I/P: 550Vdc
  • Rated Grid Voltage (V) / Range 230V / (140-285V)
  • Output Power factor 0.8 leading to 0.8 lagging
  • Max. MPPT I/P Current (A) 13A
  • Noise Emission (dB) <25dB

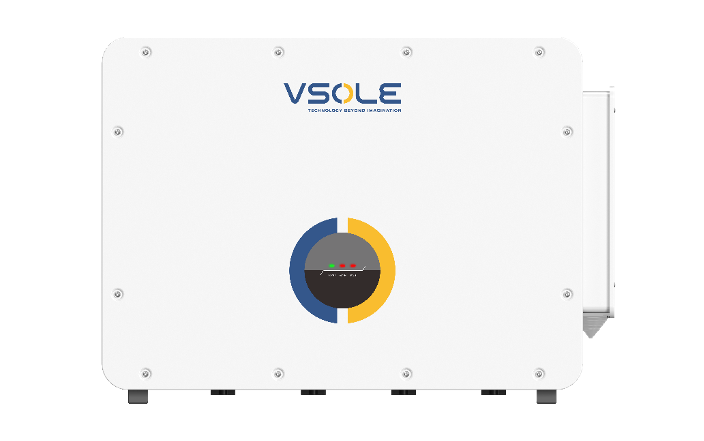

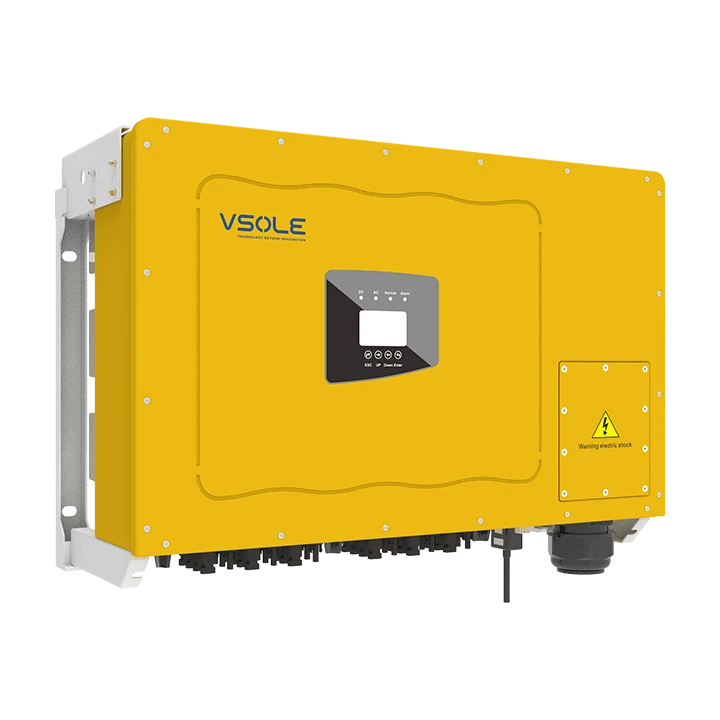

GRID TIE INVERTER – THREE PHASE
VSS (052T-1106T) 5.0KW-110KW

  • Max. conversion efficiency 98.9%
  • DC overloading up to 20%
  • MPPT Tracking Voltage 200v – 850v
  • Max. DC I/P: 1000Vdc
  • Rated Grid Voltage (V) / Range 415V / (280v – 455v)
  • Output Power factor 0.8 leading to 0.8 lagging
  • Max. MPPT I/P Current (A) 40A
  • Noise Emission (dB) <55dB
  • Type II DC / AC SPD, frequency drop control technology
  • Smart Fan Cooling
Inverter-Three-Phase-Inverter
Inverter-Hybrid

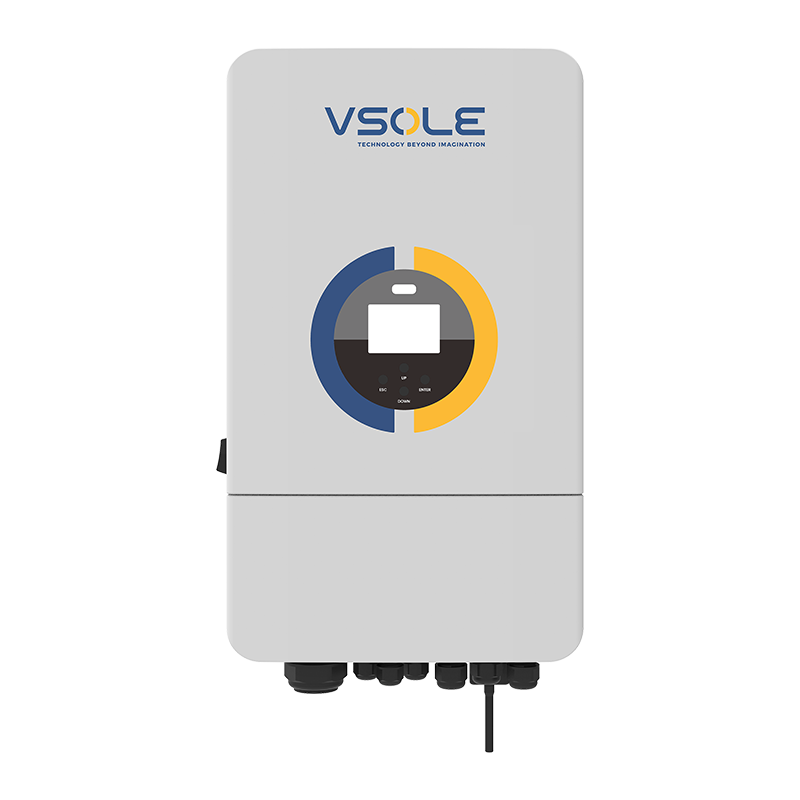

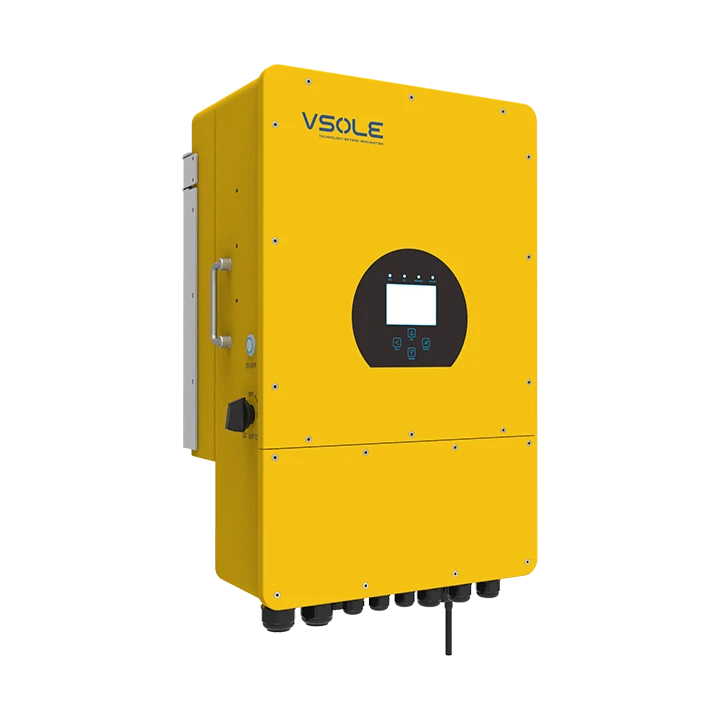

BI-DIRECTIONAL HYBRID INVERTER

  • Automatic Superfast switching time (Changeover Time) 4ms. It can be used as UPS
  • Battery Management System (BMS) to protect & enhance the battery life (Li-ion/Lead Acid/LiFP04) ——-100% unbalanced output, each phase; Max. output up to 50% rated power (Three Phase)
  • Colourful touch LCD display with ease of operation & maintenance.
  • Ideal solution for BLACK-OUT & BROWN-OUTS with GRID Exports with & without Battery.
  • Programmable supply priority for PV, Battery & Grid.
  • Inbuilt Zero Export / Reverse Power Limit to grid.
  • Grid Peak Compensation Mode – It can reduce / Limit Maximum Demand (save your penalties)
  • Intelligent SMART LOAD function for AC, water heater, Micro & Grid tie inverter.
  • DC couple and AC couple to retrofit existing solar system Max.
  • 16pcs parallel for on-grid and
  • Max. Charging/discharging current upto 240A
  • 48V low voltage battery, transformer isolation design
  • 6 times period for battery charging / discharging
  • V/f drop control.
  • Supports using diesel generator to charge the battery directly. ensuring system energy supply 24*7Hrs
  • Support storing energy from diesel generator.
